Well today I made a wee bit of progress before my neck said it was time to stop.

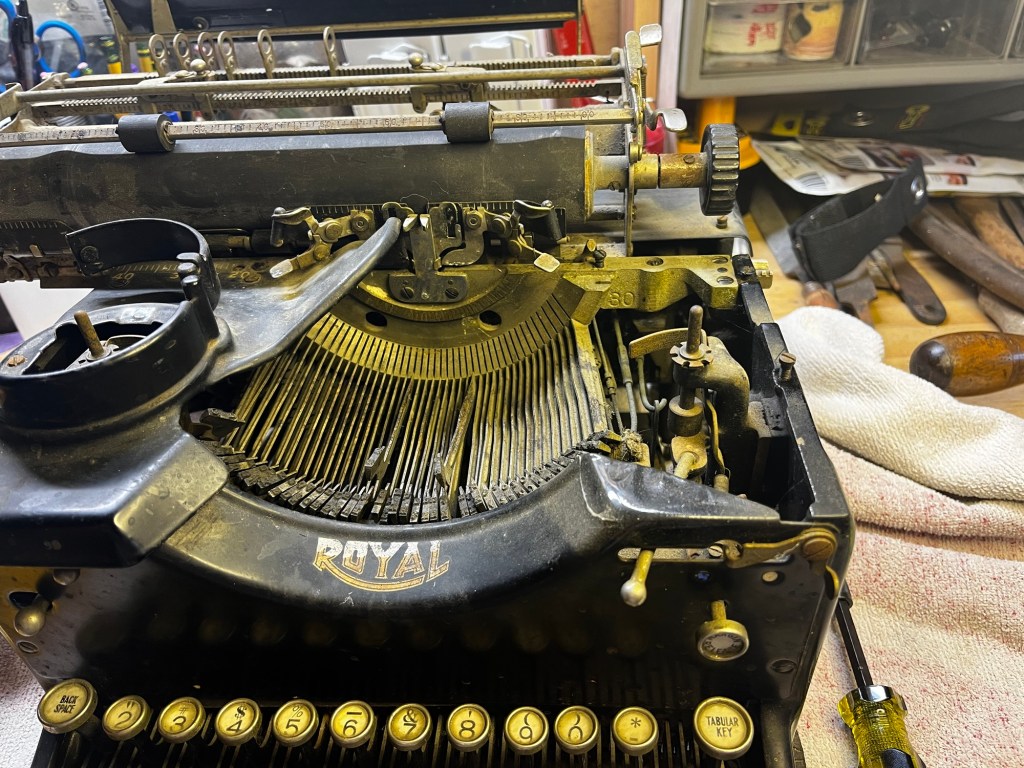

I got the front top covers off
Also, a tip from my Xerox days — after you remove a part put the screw back in the hole. That way you’ll remember which screw goes in which hole and you’ll never lose a screw.

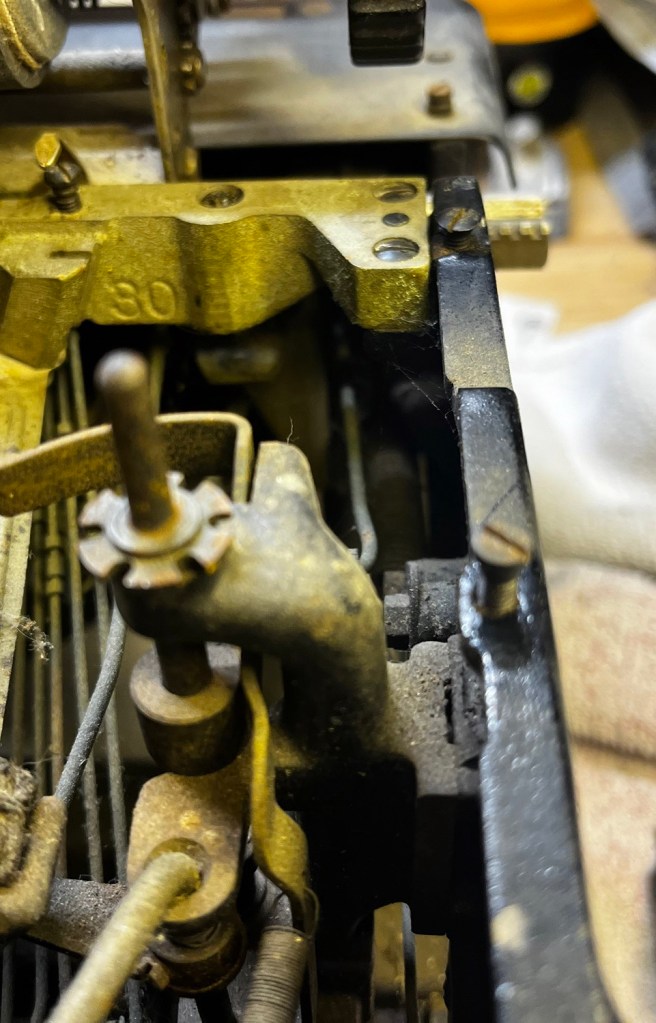

Is it drafty all of a sudden?Two screws re-installed in the right side frame. One more above and to the left of the “30”

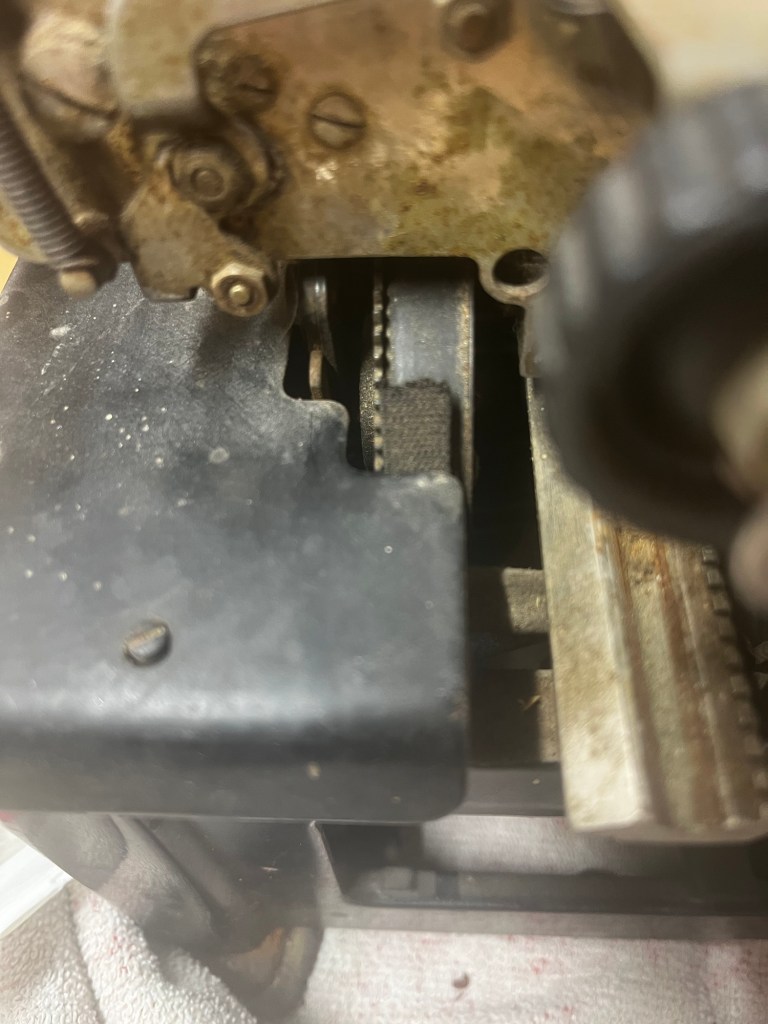

And I think I found out why the carriage doesn’t advance

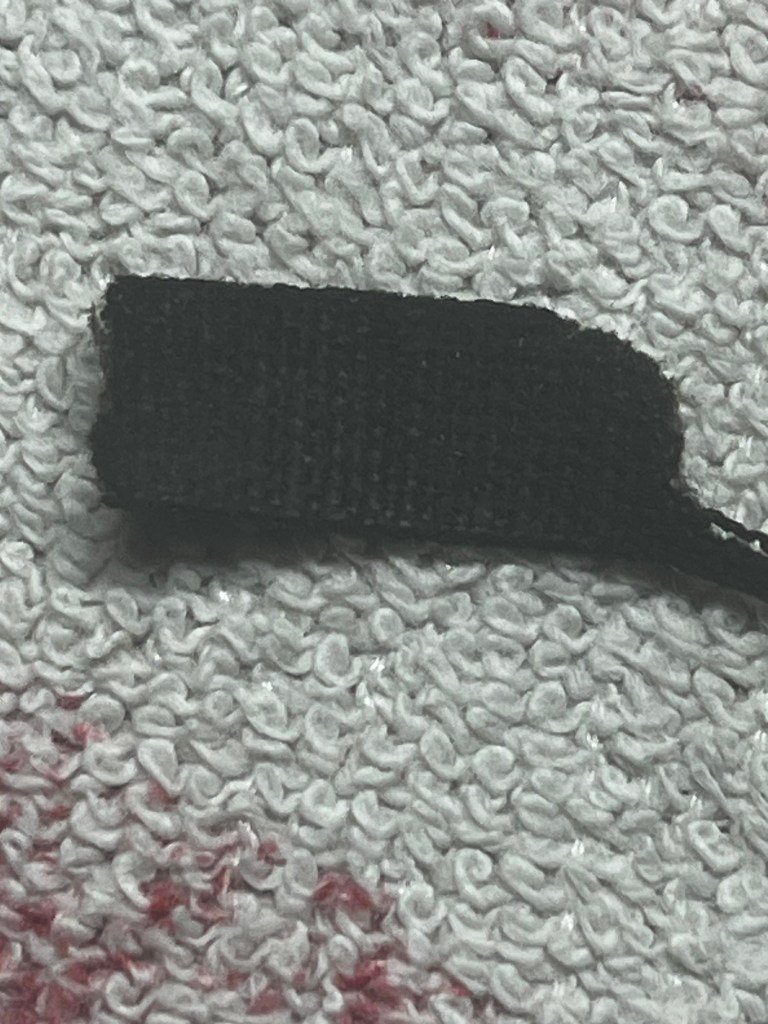

I feel like this belt should be pulling the carriage left as I type. It appears to be a cloth ribbon. I might be able to find a reasonable alternative.
Hopefully when I get this apart, I’ll be able to
Verify that this belt / ribbon is the issue.
Figure out a replacement.
Be able to reattach the replacement
And get the proper tension on the spring.
I was planning on getting the front panel off, but now I think I want to get the carriage out so I can see where this belt belongs.
